Bolts

Hex bolts, flange bolts, carriage bolts, U-bolts, anchor bolts and high-strength structural bolts — cold forged in our own plant to DIN, ISO, ANSI/ASME, JIS and GB standards, in class 4.8, 5.8, 8.8, 10.9 and stainless A2/A4.

Request a Quote Jump to Specifications

Product Range

Types of Bolts We Manufacture

Standard sizes ship in 15–20 days. Non-standard head shapes, lengths and thread lengths are made to drawing.

01

Hex Head Bolts

Standards: DIN 931, DIN 933, ISO 4014, ISO 4017, ANSI B18.2.1, GB/T 5782, GB/T 5783

Sizes: M5–M64, 1/4"–2", length 10–500 mm

02

Flange Bolts

Standards: DIN 6921, DIN 6922, IFI 111, JIS B1189

Sizes: M5–M20, serrated or plain flange, full or partial thread

03

Carriage & Cup Head Bolts

Standards: DIN 603, DIN 604, ANSI B18.5

Sizes: M6–M20, with or without square neck, for timber and steel assemblies

04

U-Bolts & Pipe Clamps

Standards: DIN 3570, custom drawings

Sizes: M6–M30, pipe OD 1/2"–24", with or without plate and nuts

05

Anchor Bolts

Standards: DIN 529, custom L / J / straight types

Sizes: M8–M42, including bent, welded plate and headed foundation bolts

06

High-Strength Structural Bolts

Standards: ASTM A325, A490, EN 14399 (HR / HV sets)

Grades: Class 8.8, 10.9 with matching nut and hardened washer

Specification Table

Common Hex Bolt Sizes & Weights

Reference data for quotation. Full size range M5–M64 — other lengths available on request.

Size (Metric)	Across Flats (mm)	Head Height (mm)	DIN No.	Approx. kg / 1000 pcs (30 mm)
M6	10	4.0	933 / 931	~7.0
M8	13	5.3	933 / 931	~13.0
M10	16 (17 for 931)	6.4	933 / 931	~23.0
M12	18 (19 for 931)	7.5	933 / 931	~38.0
M16	24	10.0	933 / 931	~85.0
M20	30	12.5	933 / 931	~165.0
M24	36	15.0	933 / 931	~280.0
M30	46	18.7	933 / 931	~545.0

Weights are indicative and vary with thread length and grade. Ask us for exact weights with your enquiry.

Materials & Grades

Mechanical Properties

Class 4.8 / 5.8 — low carbon steel, tensile 400–520 MPa, general purpose
Class 8.8 — medium carbon steel quenched and tempered, tensile 800 MPa
Class 10.9 — alloy steel, tensile 1040 MPa, for heavy-duty structures
A2-70 (304) — stainless, 700 MPa, outdoor and mildly corrosive environments
A4-80 (316) — stainless, 800 MPa, marine and chemical environments
ASTM A325 / A490 — structural bolting with EN 10204 3.1 mill certificate

Surface Finish

Corrosion Protection Options

Blue-white zinc plated, 5–8 µm (indoor)
Yellow zinc plated, 8–12 µm (mild outdoor)
Hot-dip galvanised to ISO 1461, 45–80 µm (construction)
Dacromet / Geomet, 720 h salt spray (automotive)
Black oxide, phosphated and plain oiled (industrial)
Xylan / PTFE coated for high-temperature service

Quality Assurance

Tested Before It Ships

Chemical composition analysis of every incoming wire rod coil
Tensile, yield and elongation test to ISO 898-1
Rockwell / Vickers hardness survey on 3 pcs per lot
Proof load and wedge tensile test on high-strength grades
Go / no-go thread gauging to 6g tolerance
Salt-spray test on plated parts, 72–720 h

Ordering Information

What We Need to Quote

Product type and standard (e.g. DIN 933 hex bolt)
Size — thread diameter, pitch and length
Property class or material grade
Surface finish and colour
Quantity per size, total weight or container plan
Packing requirement — bulk carton or retail pack

Send Your Requirement

Real Photos From Our Factory

Recent Production Photos

Actual photographs of parts we have made for customers. See the full 107-photo gallery for more.

Hex bolts 8.8, head marked

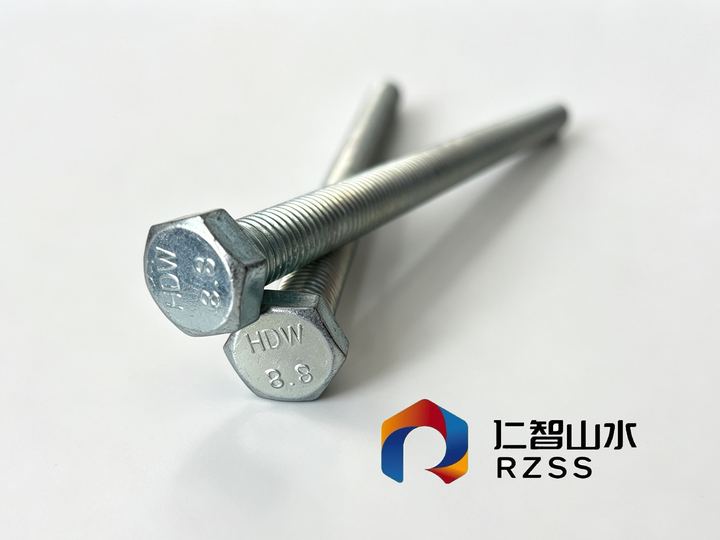

Hex bolts, zinc plated

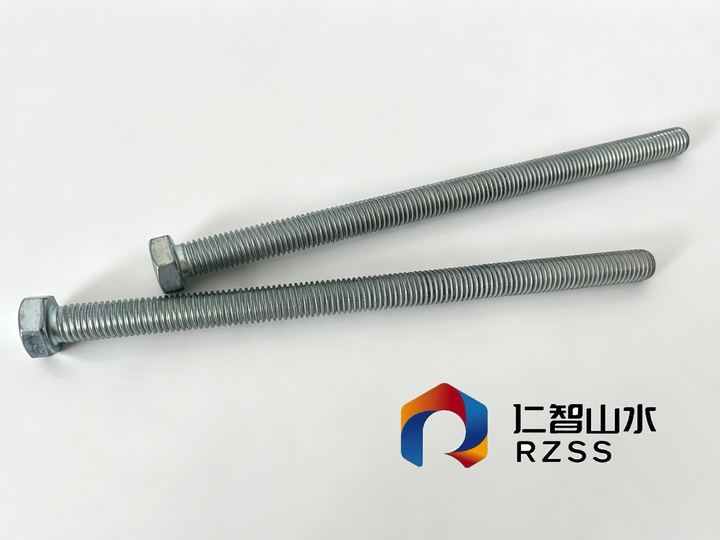

Hex bolts, full thread

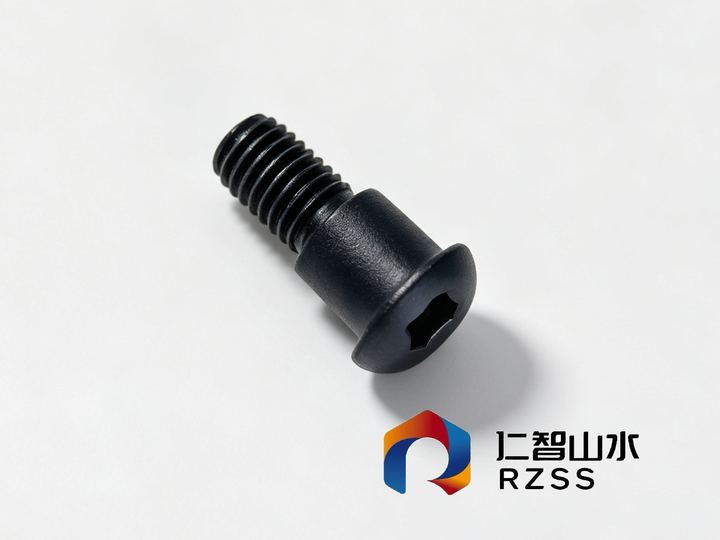

Black socket dome bolts

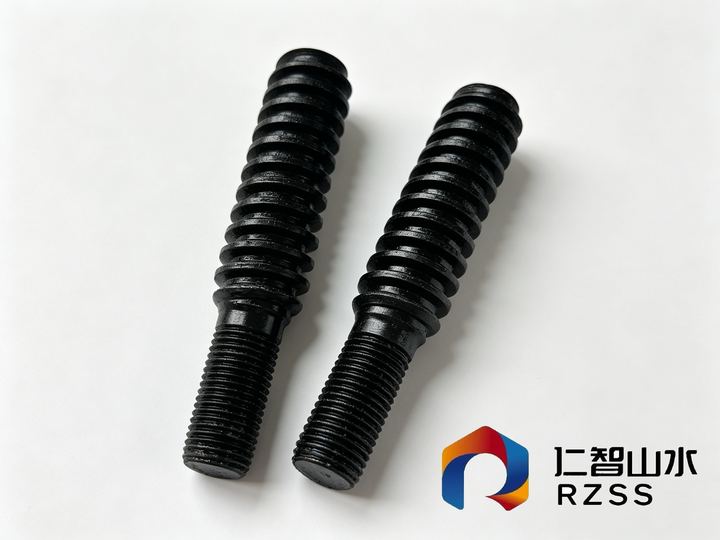

Weld studs, black finish

Hex carriage bolts

View All 107 Photos

Browse the complete gallery, filter by category and enlarge any photo.

Open Photo Gallery
