Screws

Self-tapping screws, self-drilling screws, machine screws, drywall and wood screws — cold headed and thread rolled on high-speed multi-station machines, in carbon steel, stainless steel and brass, with zinc, HDG or black phosphate finish.

Request a Quote Jump to Specifications

Product Range

Types of Screws We Manufacture

Large-volume screw production with consistent point and thread geometry — ideal for retail and OEM assembly lines.

01

Self-Tapping Screws

Standards: DIN 7981, DIN 7982, DIN 7983, ISO 7049, ANSI B18.6.4

Sizes: ST2.2–ST8, pan, countersunk, hex and flange head, sheet metal threads

02

Self-Drilling Screws

Standards: DIN 7504 K / N / P, ISO 15480

Sizes: ST3.5–ST6.3, hex washer head, with or without bonded sealing washer

03

Machine Screws

Standards: DIN 963, DIN 965, DIN 7985, DIN 912, ISO 4762

Sizes: M2–M16, slotted, Phillips, hex socket and torx drives

04

Drywall Screws

Standards: DIN 18182, ASTM C1002

Sizes: 3.5 × 25 mm to 4.8 × 150 mm, bugle head, coarse or fine thread, black phosphate

05

Wood & Chipboard Screws

Standards: DIN 571, DIN 7997, DIN 7505

Sizes: 3.0–10 mm diameter, double countersunk head, wax coated

06

Roofing & Construction Screws

Types: Hex washer head, EPDM bonded washer, wing tip, drill point

Sizes: For sandwich panel, steel sheet and metal roofing, HDG or Dacromet finish

Specification Table

Common Self-Tapping Screw Sizes (DIN 7981)

Reference data for quotation. Other lengths and thread forms available on request.

Size (ST)	Nominal Dia. (mm)	Common Lengths (mm)	Head Style	Approx. kg / 1000 pcs (19 mm)
ST3.5	3.5	9.5 / 13 / 16 / 19 / 25	Pan / CSK	~2.0
ST3.9	3.9	13 / 16 / 19 / 25 / 32	Pan / CSK	~2.5
ST4.2	4.2	13 / 16 / 19 / 25 / 32 / 38	Pan / CSK / Hex	~3.1
ST4.8	4.8	16 / 19 / 25 / 32 / 38 / 50	Pan / CSK / Hex	~4.2
ST5.5	5.5	19 / 25 / 32 / 38 / 50 / 63	Hex washer	~6.0
ST6.3	6.3	25 / 32 / 38 / 50 / 63 / 75	Hex washer	~8.3

Weights are indicative; black phosphate drywall screws are slightly heavier due to coarse thread.

Materials & Hardness

Case-Hardened for Drive Performance

Low carbon steel 1022 / 1018 — case hardened to HV 450–550 surface hardness
Core hardness — HV 280–380 for torsion strength without brittleness
Stainless A2 (304) — for outdoor and wet environments, no plating needed
Stainless A4 (316) — marine, chemical and food equipment
Brass H62 — decorative and electrical uses
Bi-metal screws — hardened tip for heavy steel sheet

Surface Finish

Finish & Colour Options

Clear zinc plated — bright, indoor general purpose
Yellow zinc plated — improved corrosion life
Black phosphate with oil — classic drywall screw finish
Hot-dip galvanised — roofing and outdoor construction
Dacromet / Ruspert — 500–1000 h salt spray for coastal roofing
Painted head in RAL colours for colour-matched panels

Quality Assurance

Performance Tested

Drive torque and cam-out test on every head type
Torsional strength test to ISO 898-7
Screw-driving test into standard test plate
Drill point penetration test for self-drilling screws
Case depth measurement on hardened screws
Salt-spray test on coated products

Packing & Retail

Retail-Ready Screw Packing

Bulk 25 kg carton for volume users
Small box 100 / 200 / 500 pcs for hardware retail
Blister card and hanging box with your brand
Assorted kit — multi-size box with driver bit
Barcode, colour label and multi-language leaflet
Full container loading plan supplied

Discuss Your Packing

Real Photos From Our Factory

Recent Production Photos

Actual photographs of parts we have made for customers. See the full 107-photo gallery for more.

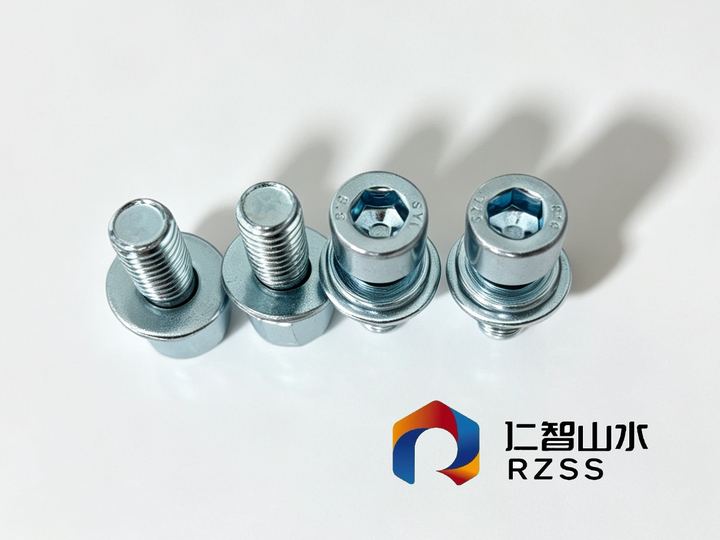

Flange bolts, small

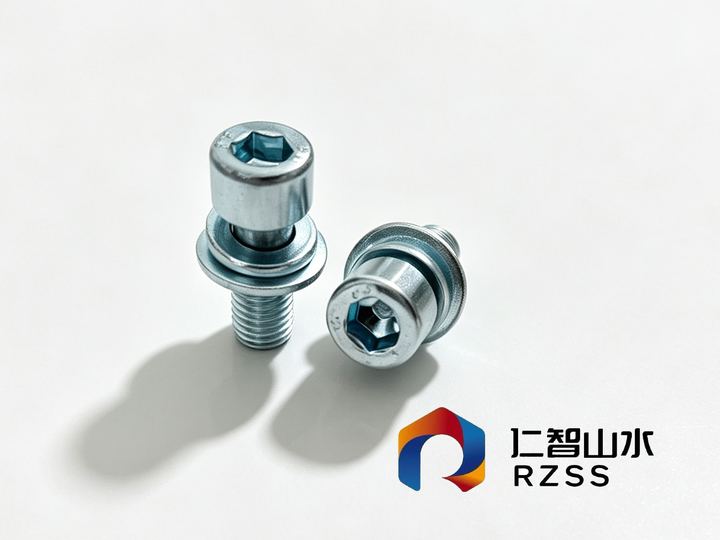

Flange screws, zinc

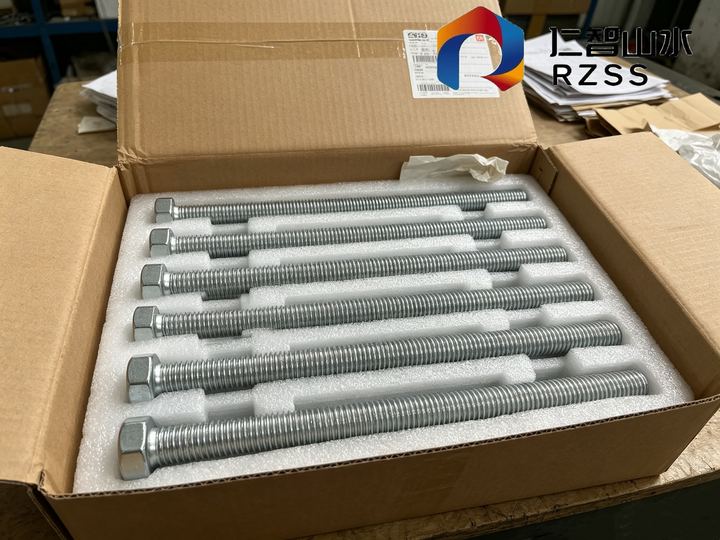

Aluminium rivet nuts

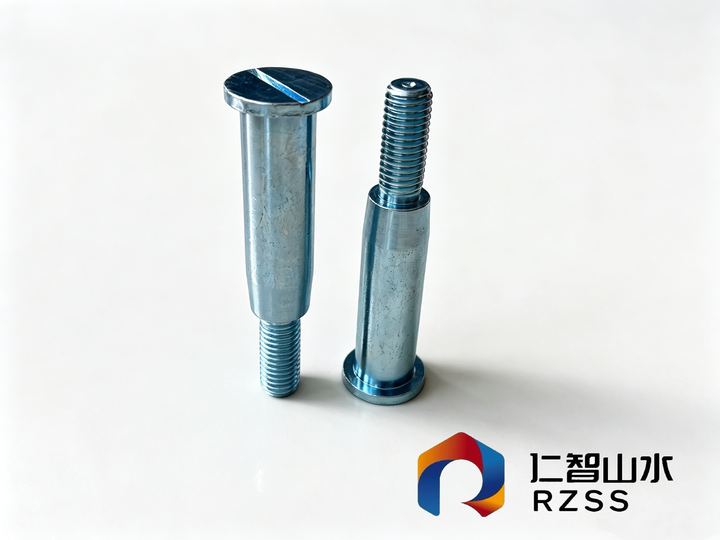

Countersunk barrel bolts

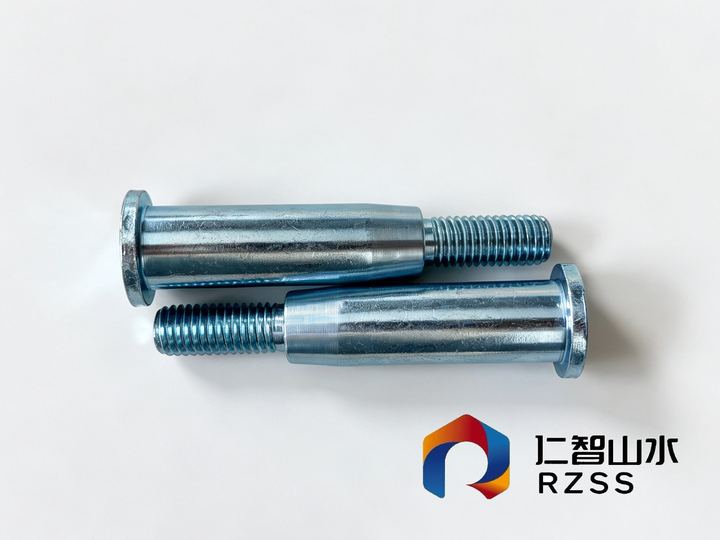

Cone point bolts, blue zinc

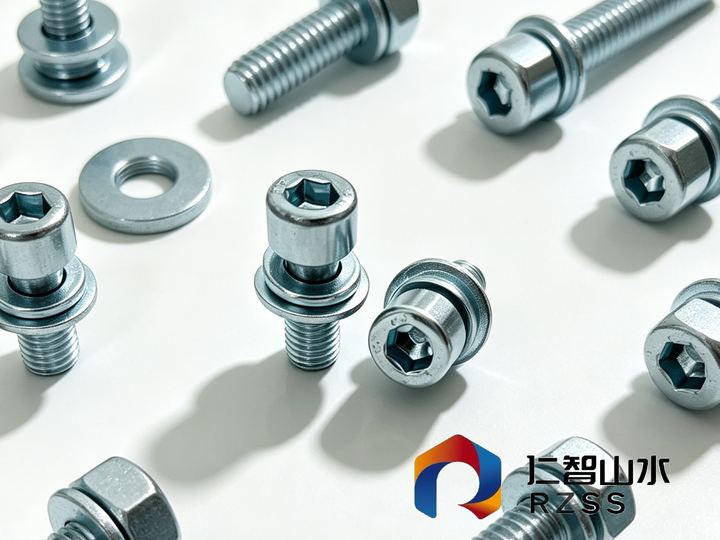

Rivet nuts, aluminium

View All 107 Photos

Browse the complete gallery, filter by category and enlarge any photo.

Open Photo Gallery
